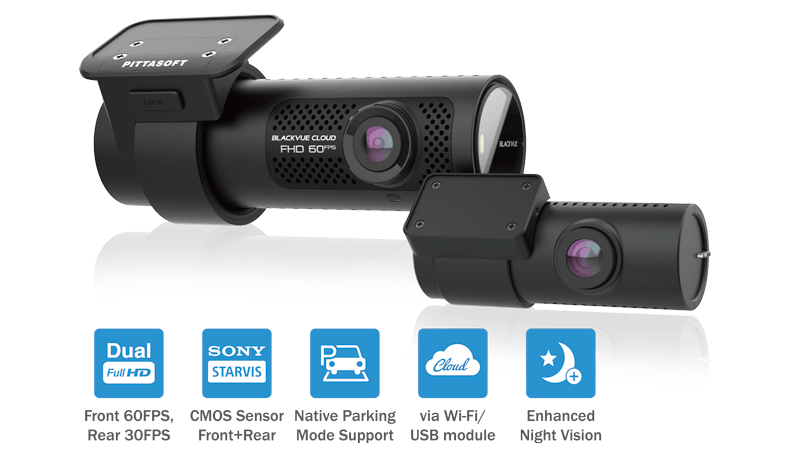

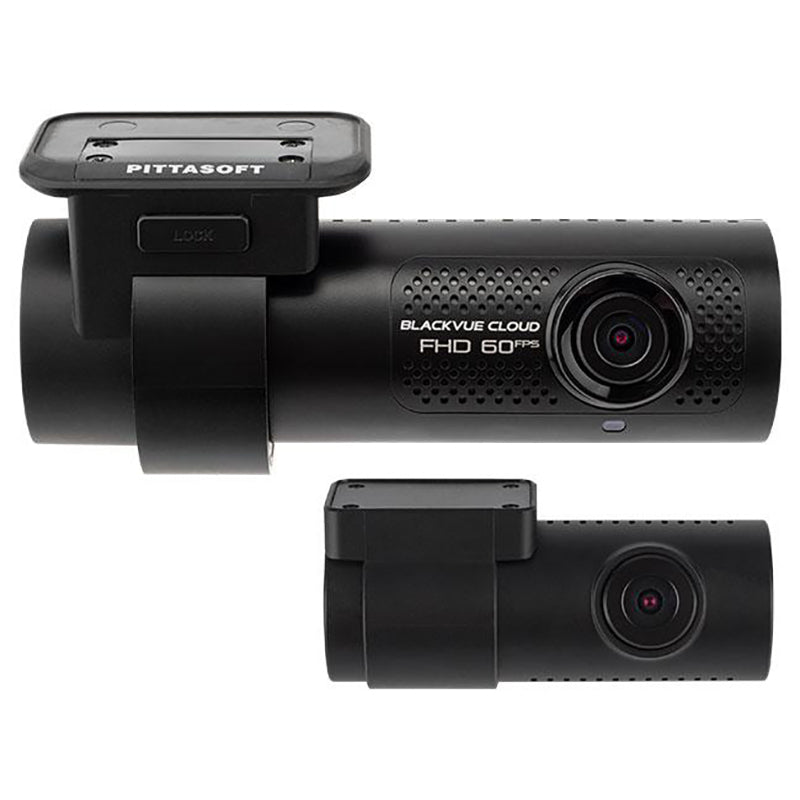

BlackVue DR750X-2CH Wi-Fi Cloud Dash Cam
Full HD Cloud Dashcams
DASHCAMS WITHOUT COMPROMISE
Front cam: 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @60FPS) / View angle: 139 degrees.
Rear cam (DR750X-2CH): 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.
Exterior waterproof cam (DR750X-2CH TRUCK): 2.1 megapixels with 6 infrared LEDs / Full HD (1920×1080 @30FPS) / View angle: 120 degrees.
With the free BlackVue Cloud add-on service, check on your car anytime, anywhere.

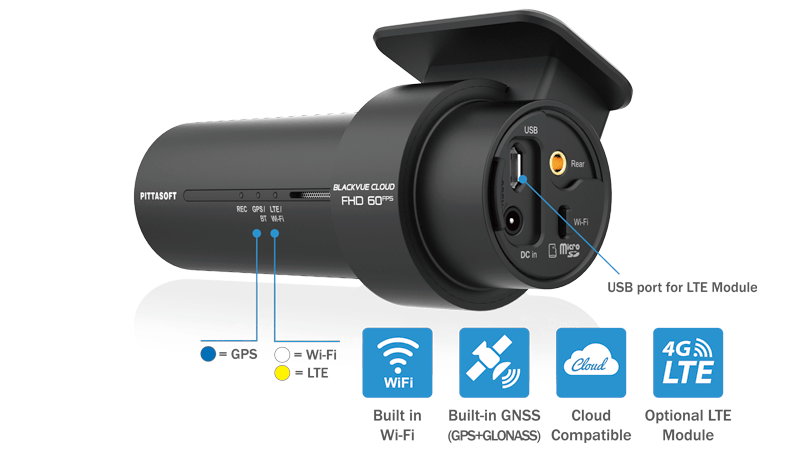

GPS, Wi-Fi and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
(*) SIM card not included.

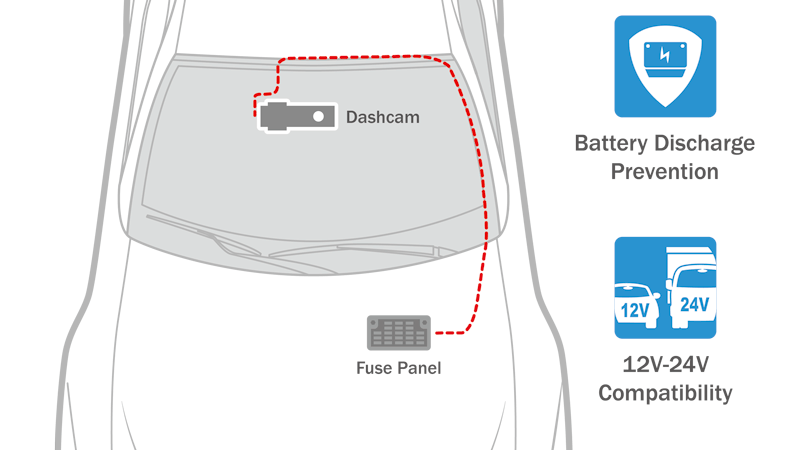

Native Parking Mode
Hardwiring cable included
DR750X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

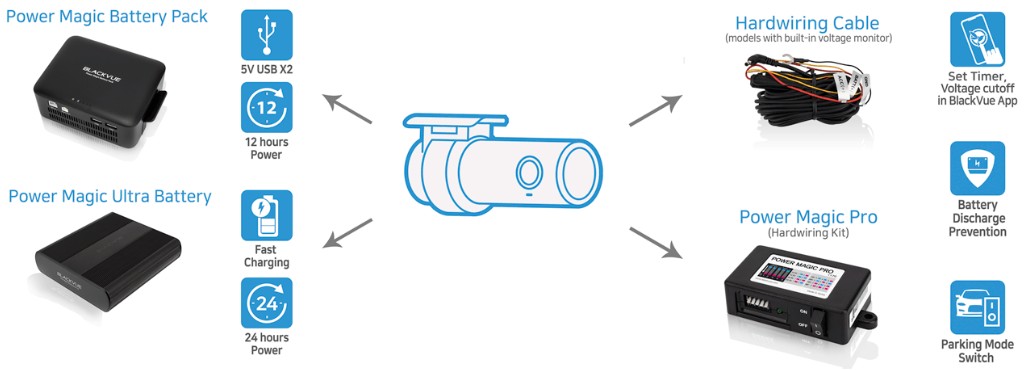

Parking Mode accessories support
DR750X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

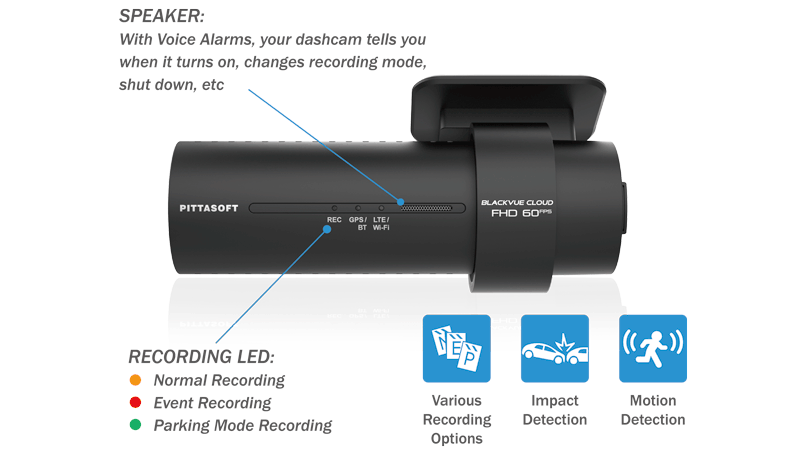

Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.

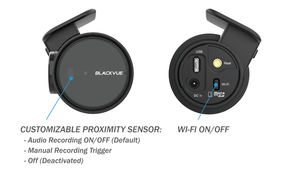

Sleek Interface

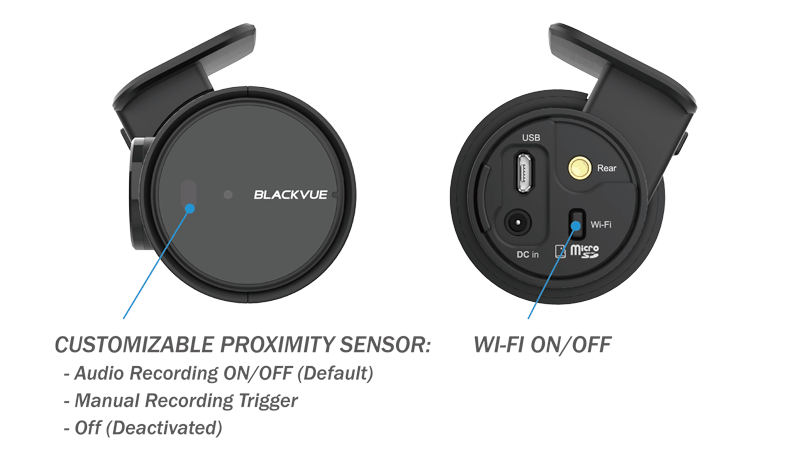

Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Wi-Fi button
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.

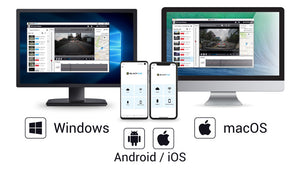

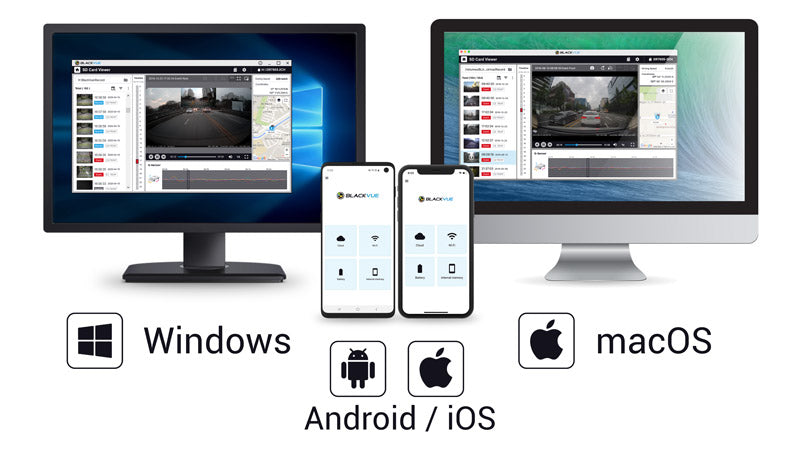

Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
BlackVue Cloud
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Enjoy remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere.

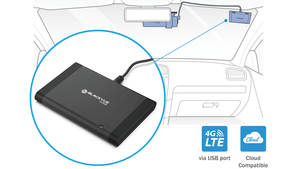

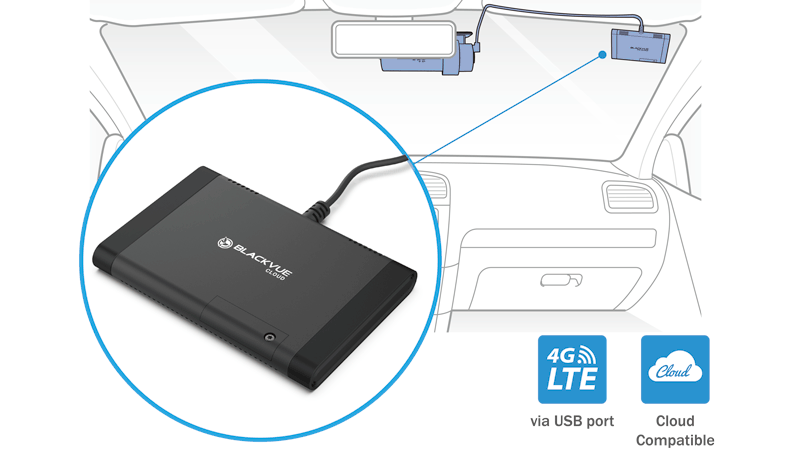

LTE Connectivity Module (Optional)
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.

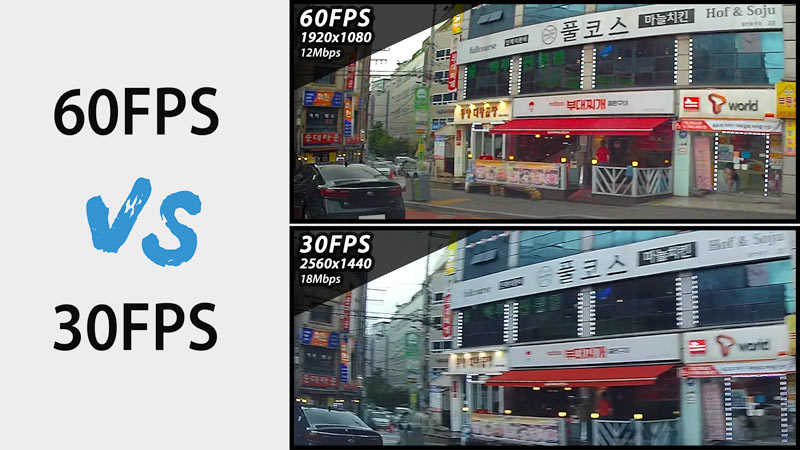

High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture
The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.

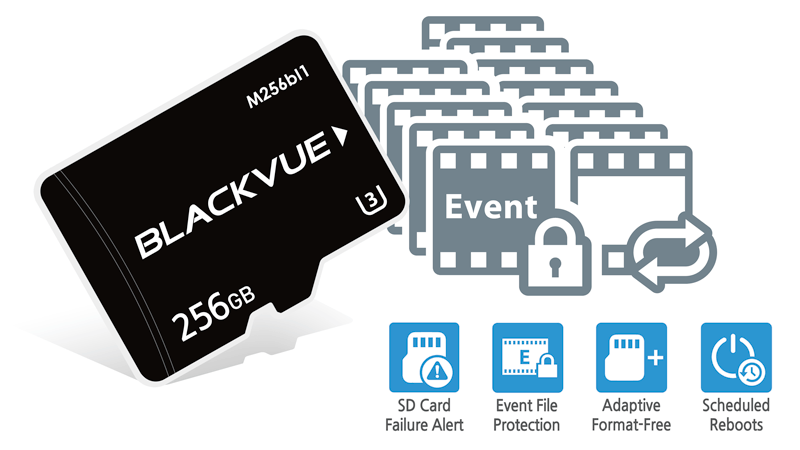

Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Intelligent Parking Mode
Protect your car when you are away.
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR750X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
Parking Mode Event Voice Notifications:
Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Scheduled Reboot:
Schedule a daily automatic reboot (optional—at night by default) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.
Super stealthy:
Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
Specification
| Model Name | DR750X-2CH |
| Channel |
2CH |
| Highlights |
Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module |
| Product Dimensions |
Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) /105 g (3.70 oz) |
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 256GB |
| Recording Modes |
– Normal, |
| Parking Mode |
YES (with 3-wire hardwiring cable – included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) |
| Viewing Angle |
Front: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate |
Front / Rear |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Highest (Extreme): 25+10 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 50) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 b.g.n) |
| Cloud Compatible |
YES |
| GPS |
Built-in (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED |
| Button |
Button: Wi-Fi ON/OFF (Tap) |
| Operation Temperature |
-20 °C − 85 °C (-4 °F − 185 °F) |
| Storage Temperature |
-20 °C − 90 °C (-4 °F − 194 °F ) |
| High Temp Cut Off |
Approx. 85 °C (185 °F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (WiFi On / GPS On / 2CH) : 375mA / hour |
| Certifications |
Front: FCC, CE, RoHS, Telec, WEEE, IC |
| software |
BlackVue Viewer |
| Application |
BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Others |
Adaptive Format-Free File Management System |
| LTE | External (optional) |
Recording time
| Model | Memory Capacity | Image Quality | Resolution | |||
|---|---|---|---|---|---|---|
| DR750X-2CH / DR750X-2CH IR / DR750X-2CH TRUCK |
Full HD @60fps + Full HD @30fps |
Full HD @30fps + Full HD @30fps |
Full HD @30fps + HD @30fps |
HD @30fps + HD @30fps |
||
| 16GB | Extreme | 55 MIN | x | x | x | |
| Sports | 1 HR 25 MIN | x | x | x | ||
| Highest | x | 1 HR 25 MIN | 1 HR 35 MIN | 2 HR | ||
| High | x | 1 HR 50 MIN | 2 HR | 2 HR 40 MIN | ||
| Normal | x | 2 HR 20 MIN | 2 HR 40 MIN | 4 HR | ||
| 32GB | Extreme | 1 HR 50 MIN | x | x | x | |
| Sports | 2 HR 50 MIN | x | x | x | ||
| Highest | x | 2 HR 50 MIN | 3 HR 10 MIN | 4 HR | ||
| High | x | 3 HR 40 MIN | 4 HR | 5 HR 20 MIN | ||
| Normal | x | 4 HR 40 MIN | 5 HR 20 MIN | 8 HR | ||
| 64GB | Extreme | 3 HR 40 MIN | x | x | x | |
| Sports | 5 HR 40 MIN | x | x | x | ||
| Highest | x | 5 HR 40 MIN | 6 HR 20 MIN | 8 HR | ||
| High | x | 7 HR 20 MIN | 8 HR | 10 HR 40 MIN | ||
| Normal | x | 9 HR 20 MIN | 10 HR 40 MIN | 16 HR | ||
| 128GB | Extreme | 7 HR 20 MIN | x | x | x | |
| Sports | 11 HR 20 MIN | x | x | x | ||
| Highest | x | 11 HR 20 MIN | 12 HR 40 MIN | 16 HR | ||
| High | x | 15 HR 40 MIN | 16 HR | 21 HR 20 MIN | ||
| Normal | x | 18 HR 40 MIN | 21 HR 20 MIN | 32 HR | ||
| 256GB | Extreme | 14 HR 40 MIN | x | x | x | |
| Sports | 22 HR 40 MIN | x | x | x | ||
| Highest | x | 22 HR 40 MIN | 25 HR 20 MIN | 32 HR | ||
| High | x | 31 HR 20 MIN | 32 HR | 42 HR 40 MIN | ||
| Normal | x | 37 HR 20 MIN | 42 HR 40 MIN | 64 HR | ||
| Bitrate (Mbps) Front + Rear | Extreme | 25 + 10 | x | x | x | |
| Sports | 12 + 10 | x | x | x | ||
| Highest | x | 12 + 10 | 12 + 8 | 8 + 8 | ||
| High | x | 10 + 8 | 10 + 6 | 6 + 6 | ||
| Normal | x | 8 + 6 | 8 + 4 |
4 + 4 |
||
What's Included
- Front camera
- Rear camera
- Cigarette lighter power cable
- Hardwiring power cable
- microSD Card
- microSD Card reader
- Rear camera connection cable (6m / 19.68ft)
- Double-sided tape for the Mounting Brackets
- Cable clips(8EA)
- Pry tool
- Quick start guide
