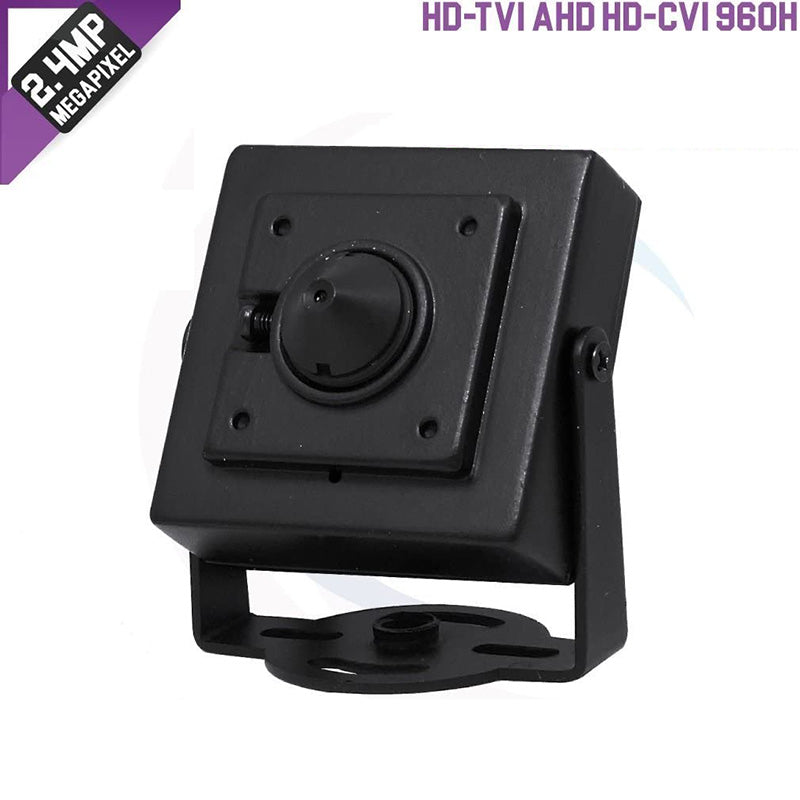

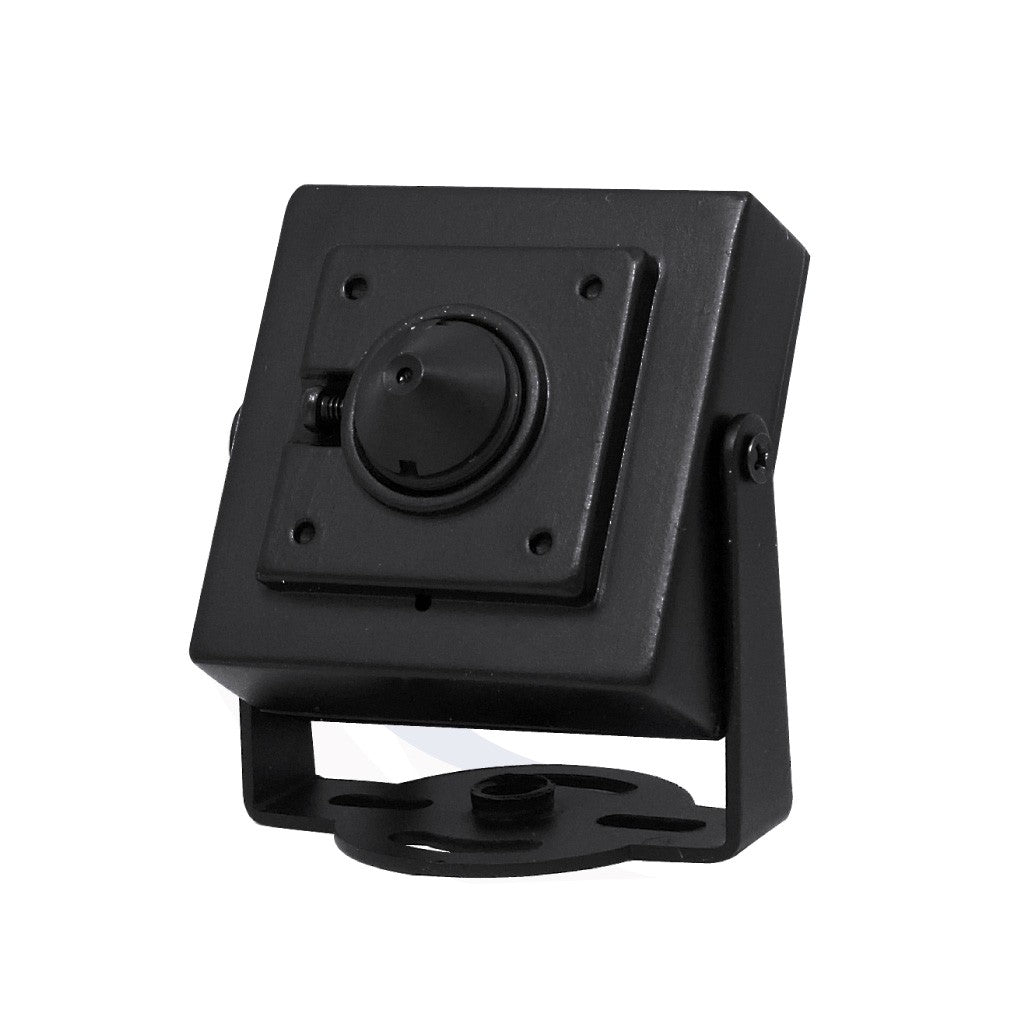

2MP Pinhole Camera 4-In-1(TVI/AHD/CVI/CVBS), 1080P, 3.7mm, DC12V
- 4-In-1 (AHD, HD-TVI, HD-CVI, 960H)
- 1/2.7" 2.4MP Aptina Sensor
- Effective Pixels: 1920(H) x 1080(V)
- 3.7mm Fixed Lens
- 0.01Lux IR LED On
- 0.01Lux @ F1.2 (AGC On)
- 30FPS (NTSC)
- 12V DC
- OSD Menu. Can Switch to Analog Mode
- CoC Compatible (Control Over Coax)
- FLC / BLC (E Model)
- NTSC / PAL Compatible
| Output | Max Res. | Lens | IR / Range | Power | Note | WDR |
| TVI CVI AHD 960H |
Fixed 3.7mm Pinhole |
N/A | N/A | DC12V | OSD menu thru Coax | DWDR |
| CAMERA | |
| Image Sensor | 1/2.7" 2.4MP HD Aptina Sensor |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter | AUTO: 1/50-1/100, 000Sec (PAL) & 1/60-1/100,000Sec (NTSC) |
| Mini. Illumination | 0.01Lux(0Lux IR on) |
| S/N Ratio | ≥45dB(Max 70 dB) |
| Video Output | Composite Signal (1.0Vp-p, 75Ω), Compatible with AHD, HD-TVI, HD-CVI, 960H |
| Video Frame Rate | 30fps @ 1080P |
| CAMERA FEATURES | |
| AGC | Automatic / manual |
| IR LEDs | N/A |
| IR LEDs Distance | N/A |
| Day / Night | Auto (ICR) / B&W / Color |
| Noise Reduction | 2D DNR |
| BLC | Automatic / manual |
| White Balance | Auto adaptive(Range 2200～10000K) |
| WDR | N/A |
| OSD Menu | via Coaxial Cable (CoC), Compatible with Analog Mode |
| LENS | |
| Focal Lens | 3.7mm Fixed Lens |
| RECORDING | |
| Encode | CBR |
| GENERAL | |
| Power Supply | DC 12V ± 10% |
| Power Consumption | 300mA |
| Working Environment | -22ºF ~ 140ºF (-30°C ~ 60°C) |
| Protection | N/A, |
| Dimensions | 1.7" x 1.26 x 2.2" (44 x 32 x 55mm) |
| Weight | 0.24lbs (0.11kg) |
