BlackVue DR970X Box-2CH Plus 4K Front and Rear Dash Cam

BlackVue DR970X Box-2CH Plus 4K Front and Rear Dash Cam

The BlackVue DR970X Box-2CH Plus is a premium dual-channel dash cam designed for detailed front and rear recording with enhanced protection for your stored video. Unlike conventional dash cams that store footage inside the windshield-mounted camera, this system uses a separate lockable recording box that can be installed in a protected location inside the vehicle.

The front camera records in 4K Ultra HD at 30 frames per second using a Sony STARVIS 2 image sensor, while the rear camera records in Full HD at 30 frames per second. Built-in WiFi and Bluetooth, an included external GPS receiver, parking recording support, BlackVue app compatibility, and a 64GB microSD card make this a complete front and rear vehicle recording system.

Model clarification: This product is the DR970X Box-2CH Plus Front + Rear model. It is not the Front + Interior IR version, the standard DR970X-2CH Plus, the built-in LTE model, or the DR970X Box Plus II. Optional LTE connectivity requires a compatible external BlackVue LTE module or another supported internet connection.

Key Features (BlackVue DR970X Box-2CH Plus)

• 4K Ultra HD Front Recording: Records the road ahead at 3840 × 2160 resolution and 30 frames per second for detailed video of vehicles, road signs, and driving events.
• Full HD Rear Recording: The included rear camera records at 1920 × 1080 resolution and 30 frames per second for continuous rear vehicle coverage.
• Sony STARVIS 2 Front Sensor: The approximately 8.3-megapixel front image sensor is designed to provide improved detail in low-light and high-contrast driving conditions.

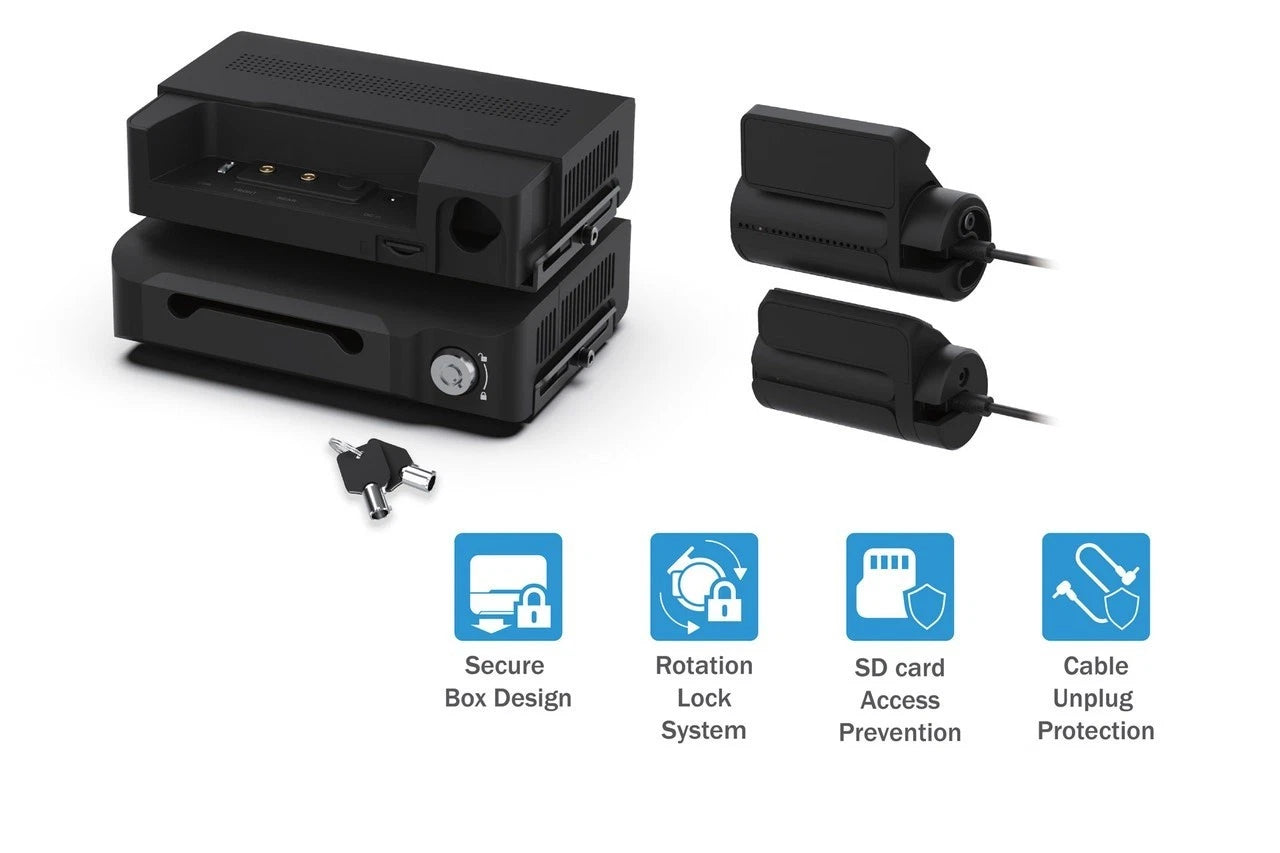

• Separate Secure Recording Box: Video is stored in a lockable main unit that can be installed away from the windshield-mounted cameras, helping reduce easy access to the microSD card and recorded footage.

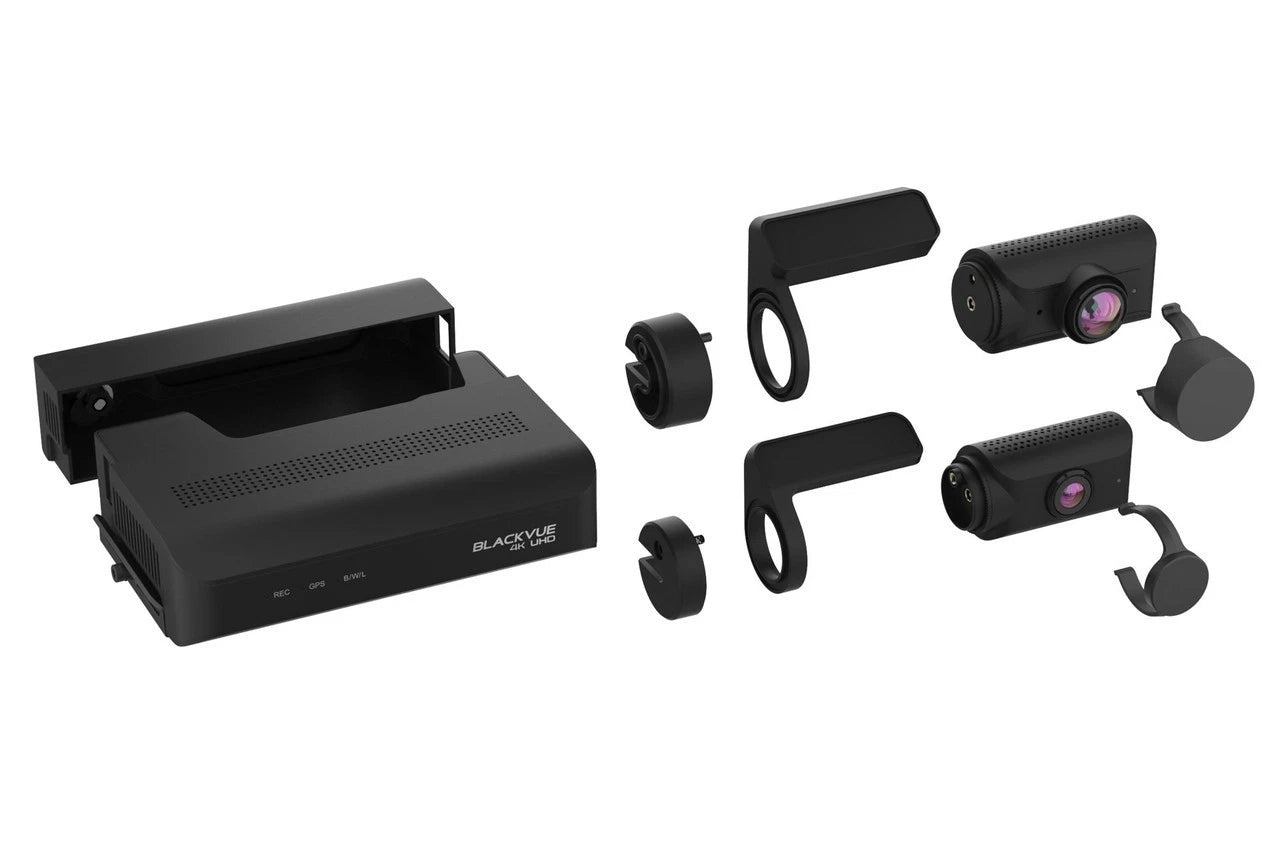

• Compact Front and Rear Cameras: The low-profile camera design supports discreet installation without placing the primary recording storage directly on the windshield.
• Wide Camera Coverage: The front camera provides a 146-degree diagonal viewing angle, and the rear camera provides a 131-degree diagonal viewing angle.

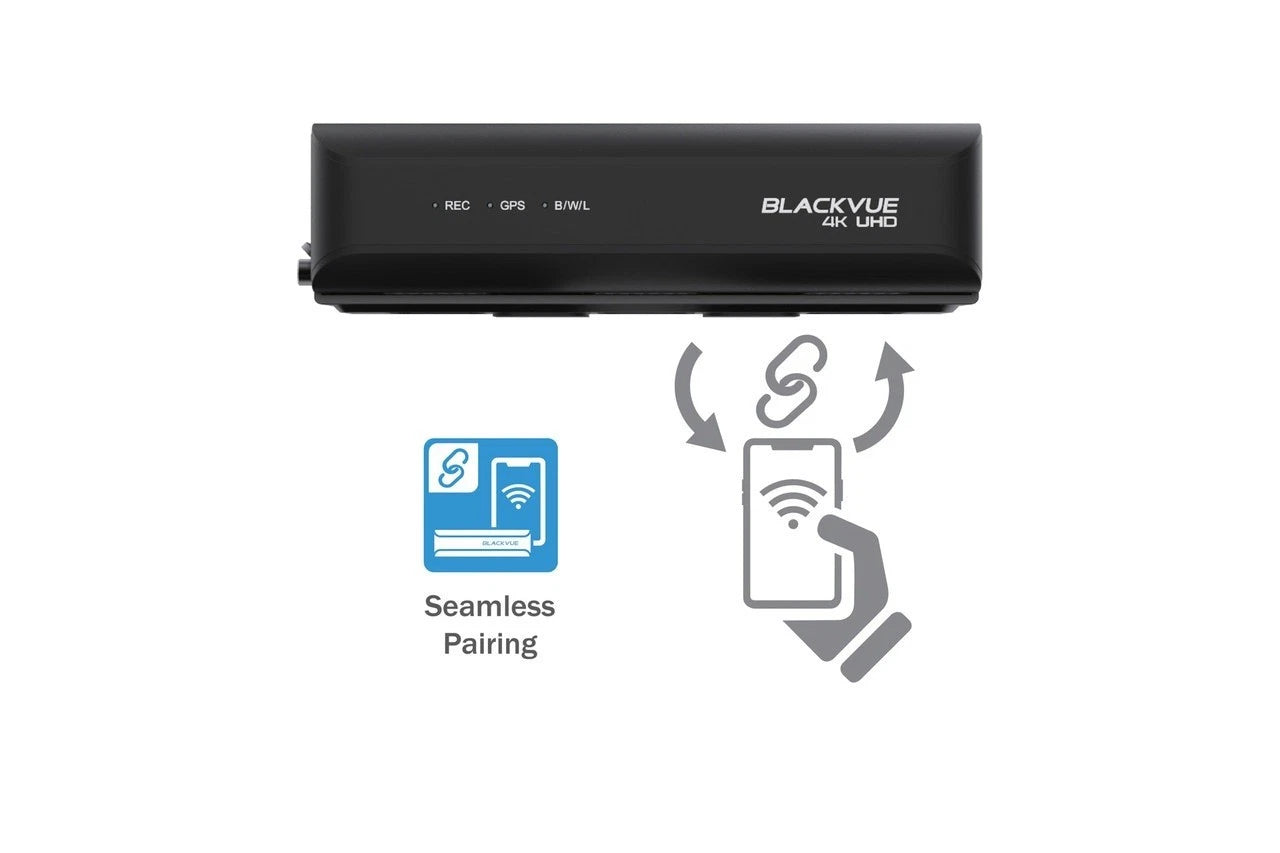

• Built-In WiFi and Bluetooth: Connect a compatible smartphone to the BlackVue app to review recordings, adjust settings, and manage the dash cam.

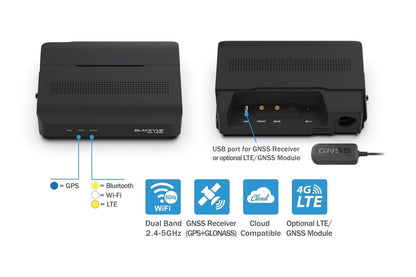

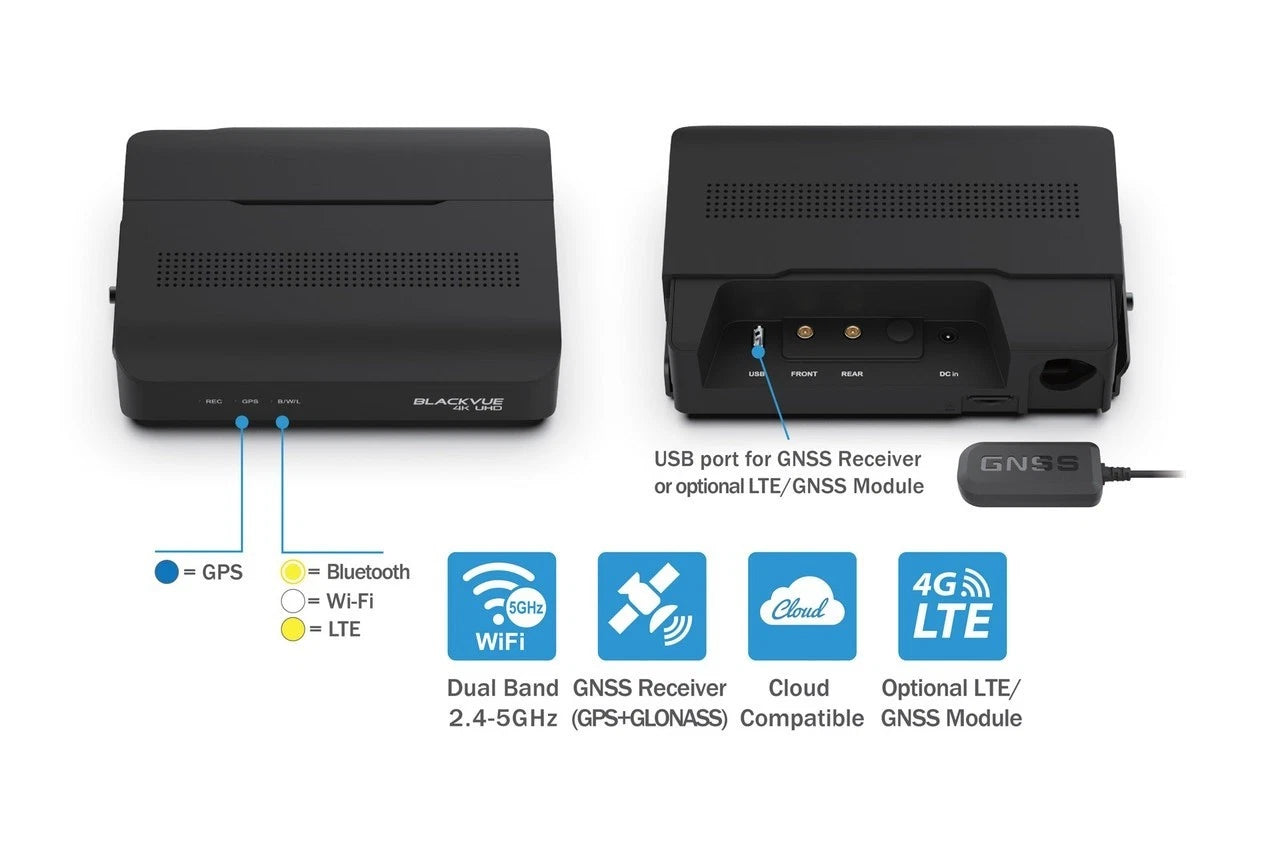

• External GPS Included: The included dual-band GPS and GLONASS receiver can record location and speed information for compatible video playback.
• Parking Mode Support: The included three-wire hardwiring cable can support parking recording when properly connected to a compatible vehicle electrical system.

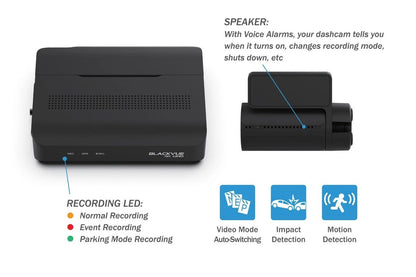

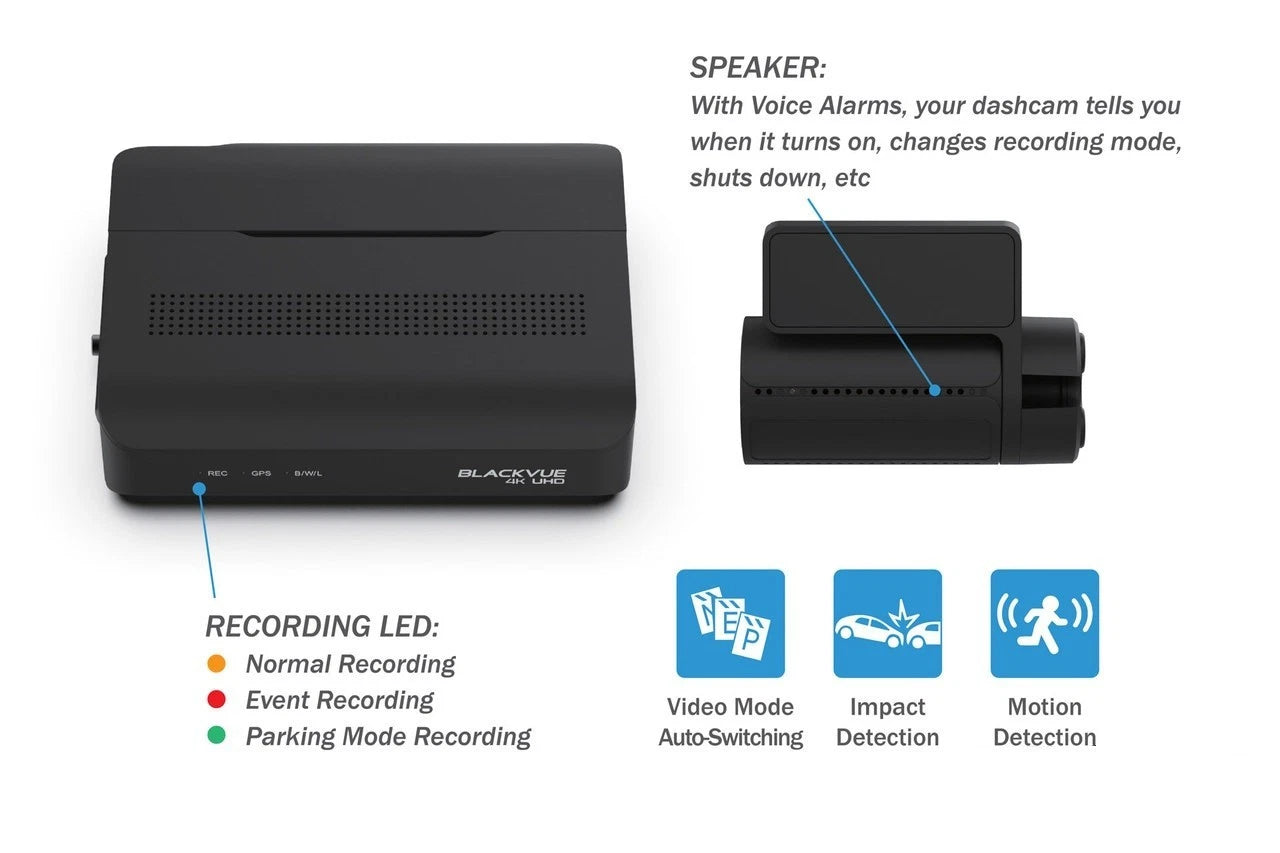

• Multiple Recording Modes: Supports normal, event, manual, and parking recording modes.
• H.265 and H.264 Video: Supports efficient HEVC H.265 and AVC H.264 video compression in MP4 format.
• 64GB Memory Card Included: Includes a 64GB microSD card and supports compatible BlackVue microSD cards in 64GB, 128GB, 256GB, and 512GB capacities.
• 12V and 24V Vehicle Support: Compatible with suitable passenger and commercial vehicle electrical systems using 12V or 24V DC power.
• Optional BlackVue Cloud Connection: Cloud functions require a compatible internet connection. An external LTE module, SIM card, cellular service, and Cloud subscription are not included.

What's in the Box?

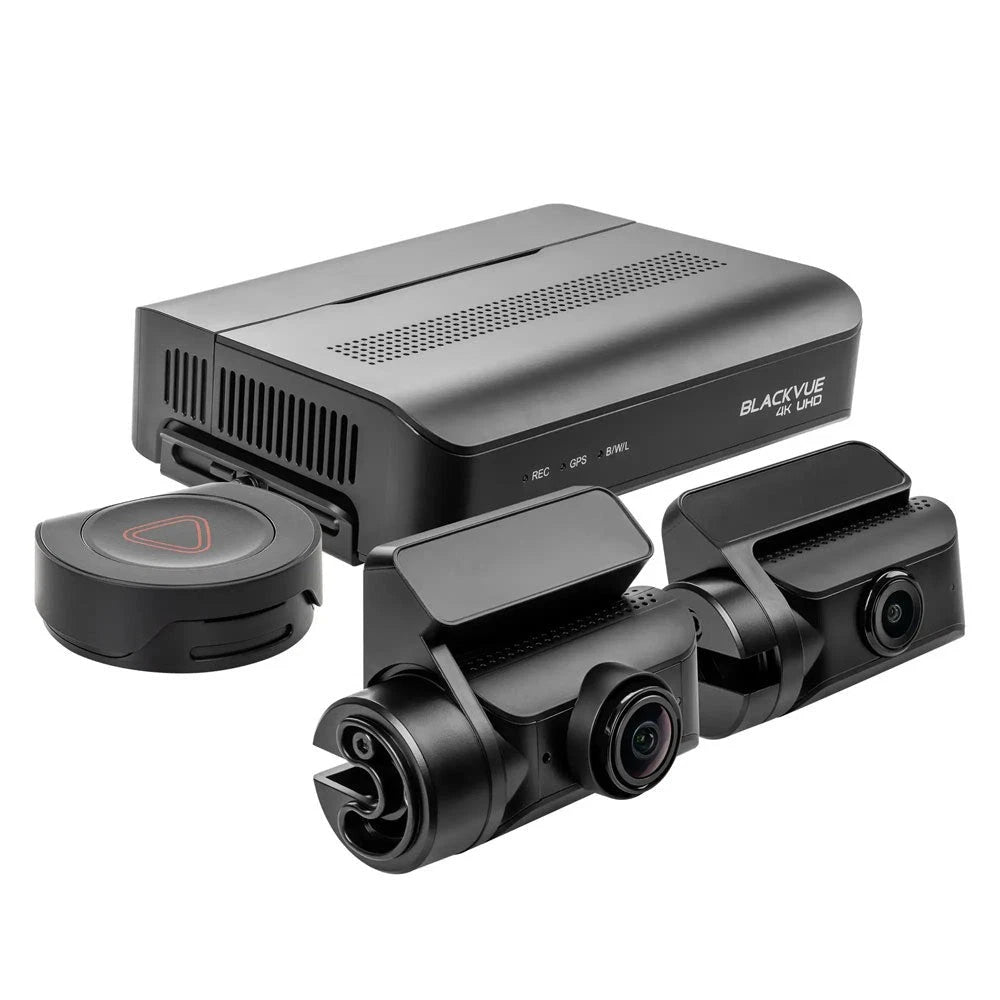

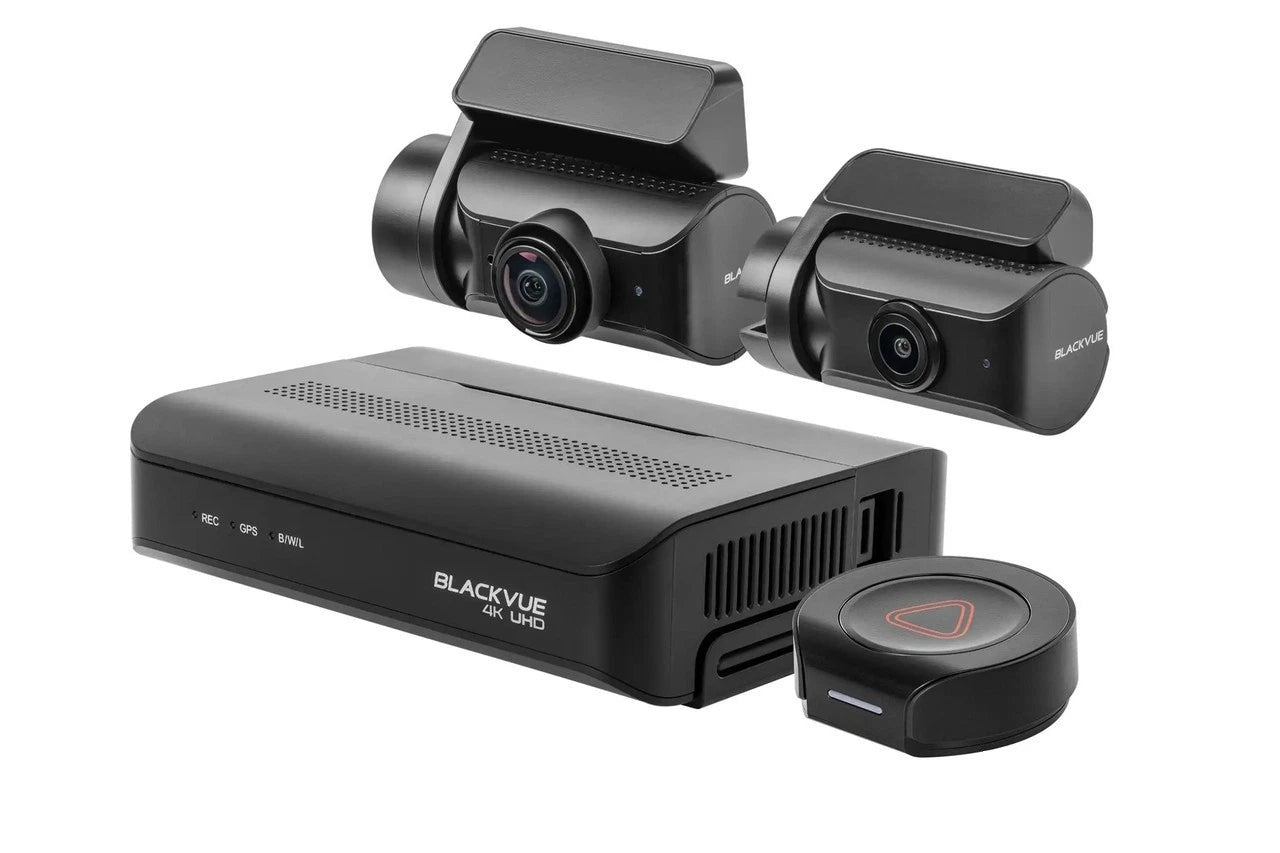

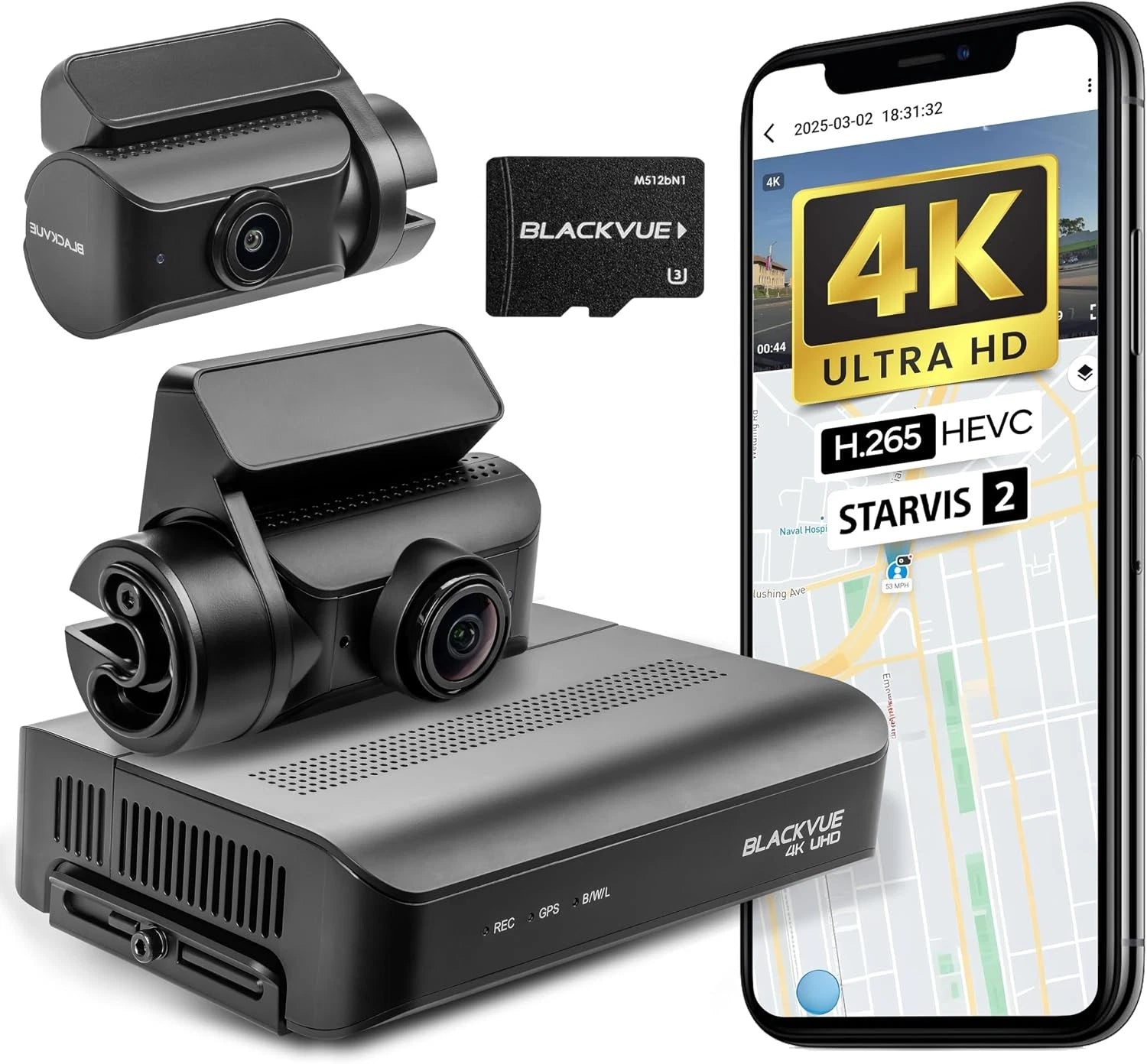

• BlackVue DR970X Box main recording unit
• 4K Ultra HD front camera
• Full HD rear camera
• 64GB microSD card
• microSD card reader
• External GPS receiver
• Main unit cigarette lighter power cable
• Main unit three-wire hardwiring power cable
• Camera connection cables, 2 pieces
• Main unit key
• Velcro strip
• Pry tool
• Cable clips, 8 pieces
• Spare tamperproof-cover screws, 3 pieces
• Allen wrench
• Double-sided tape for mounting brackets
• Quick Start Guide
