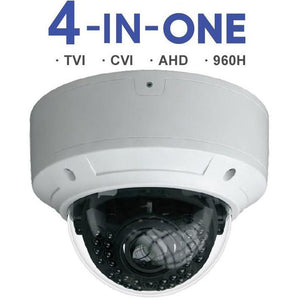

2MP(1080P) Varifocal Lens Vandal Dome
4-In-1(TVI/AHD//CVBS), 2.8-12mm, 36IR 120ft, DC12V
- HD TVI lossless video output
- CMOS progressive scan, perfectly capture the moving object
- High speed, long distance, real time transmission
- Auto color to B / W at low illumination
- Support ICR switch, true day / light
- Support noise reduction function
- 120ft IR night view distance
- IP66 ingress protection
- DV12V
| Output | Lens | IP rate | IR / Range | Power | UTC | WDR |
| TVI CVI AHD 960H |
VF 2.8~12mm |
IP66 | 80~100ft | DC12V | OSD menu thru Coax | DWDR |
| Model | VTC-8AV21 | |
| Camera | Image sensor | 1/3"CMOS |
| Resolution: | 1920×1080 | |
| Image System | PAL/NTSC | |
| Min.illumination | 0Lux(IR LED ON) | |
| Lens | 2.8~12mm | |
| IR distance | 20~30M | |
| Water proof | IP66 | |
| Video out | BNCx1 | |
| Image size | 1080P(1920*1080) | |
| Frame rate: | 30fps(60Hz),25fps(50Hz) | |
| Functions | Day/night | Yes(ICR) |
| S/N Ratio | ＞52dB(AGC off) | |
| Electronic shutter | 1/60s -1/67500s | |
| AGC | Yes | |
| White balance | Auto | |
| Others | Power supply | DC12V |
| Working Enviroment | -40℃ ~ 70℃，10%~90% humidity | |
| Dimensions(mm) | Ф150x114 | |
