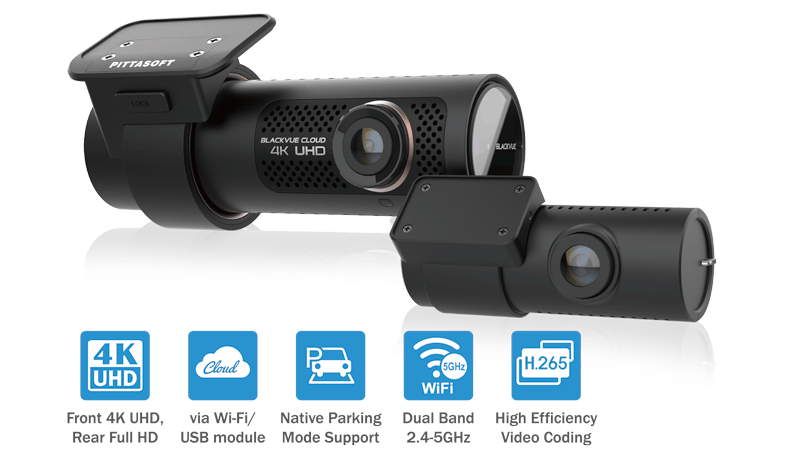

BlackVue DR900X-2CH PLUS 4K UHD Wi-Fi Cloud Dash Cam
4K UHD + FULL HD CLOUD DASHCAM
IN A CLASS OF ITS OWN

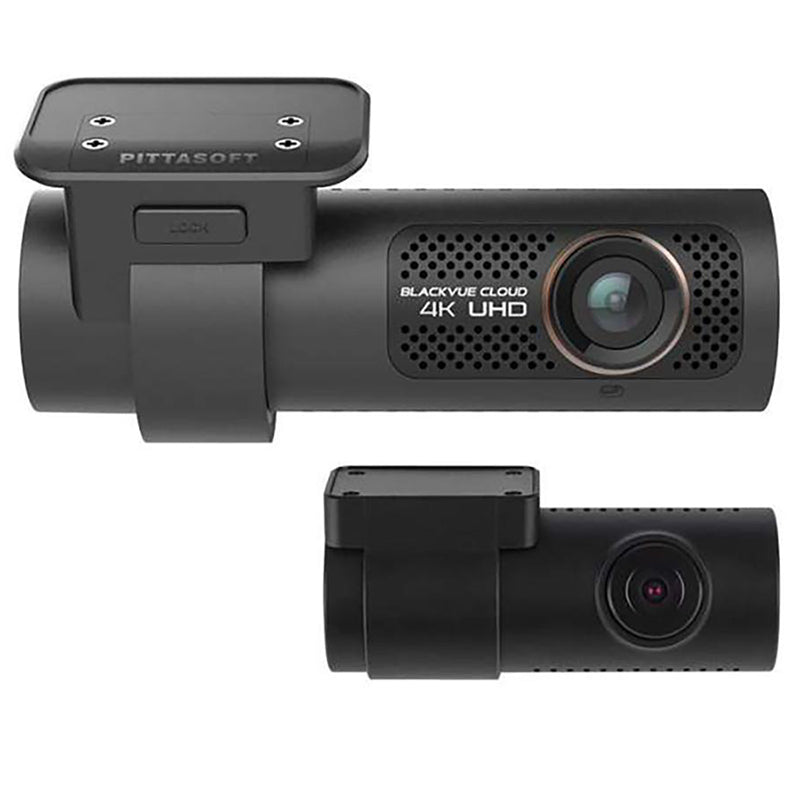

Front cam: 8 megapixels sensor / 4K Ultra High Definition (3840×2160 @30FPS) / View angle: 162 degrees.
Rear cam (DR900X-2CH Plus): 2.1 megapixels STARVIS™ sensor / Full HD (1920×1080 @30FPS) / View angle: 139 degrees.
Your BlackVue captures critical details while driving or in Parking Mode.
With BlackVue Cloud, check on your car from anywhere, anytime.

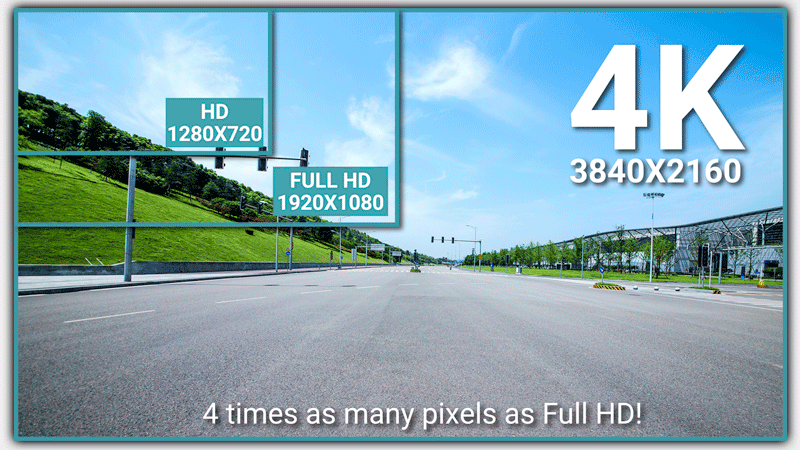

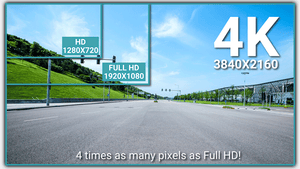

4K ULTRA HIGH DEFINITION CAPTURE
Discover the 4K difference
4K in a dashcam is not a gimmick. It is a game-changer.
It is not about playing videos on a giant screen–although you could do that too. It’s about providing video proof.
A dashcam is only as good as its ability to capture crucial details–usually license plate numbers.
The 8-megapixel 4K UHD sensor does just that by capturing 4 times as many pixels as in Full HD.
And with its fast shutter speed, details are frozen in place.
Just pause and zoom in.

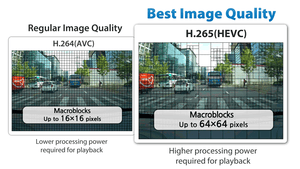

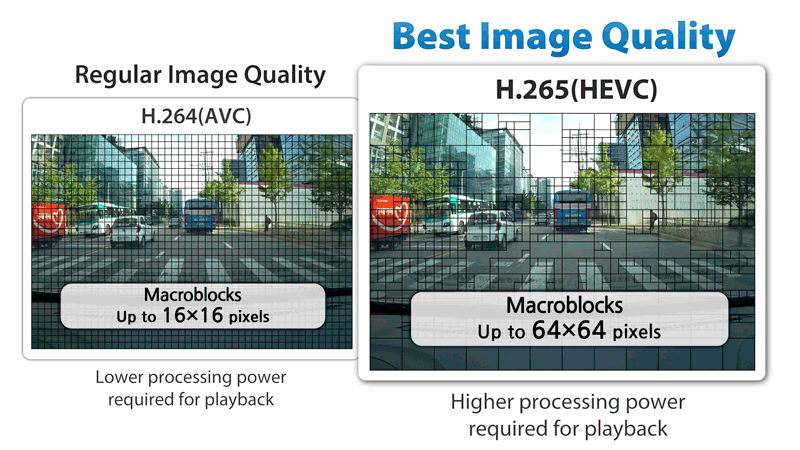

THE BEST COMPRESSION TECHNOLOGY
No need to sacrifice recording time
With bigger resolution come bigger files…unless you have better compression.
High Efficiency Video Coding (HEVC/H.265) is the standard in 4K video broadcasting and streaming.
With HEVC, you get great-looking 4K videos but same recording time as a regular Full HD dashcam.
Who said you can’t have it all?

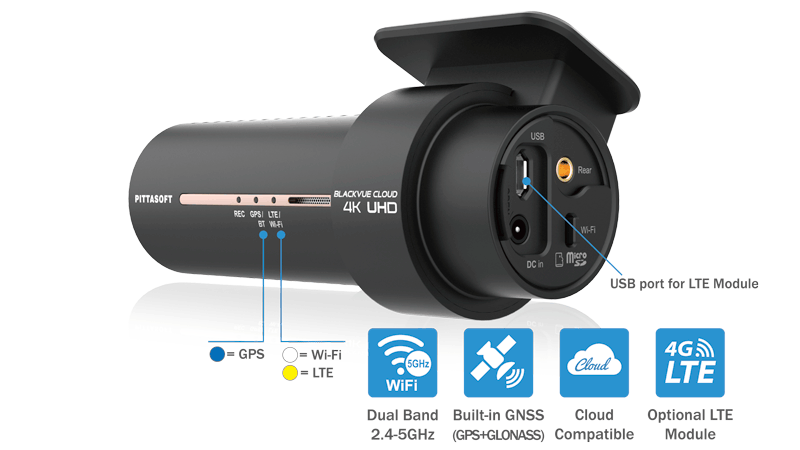

BUILT-IN GPS AND DUAL-BAND WI-FI
Fast Wi-Fi, GPS and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: download videos to your phone at blazing speed. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience and use your BlackVue as a Wi-Fi hotspot for up to five devices.
(*) SIM card not included.

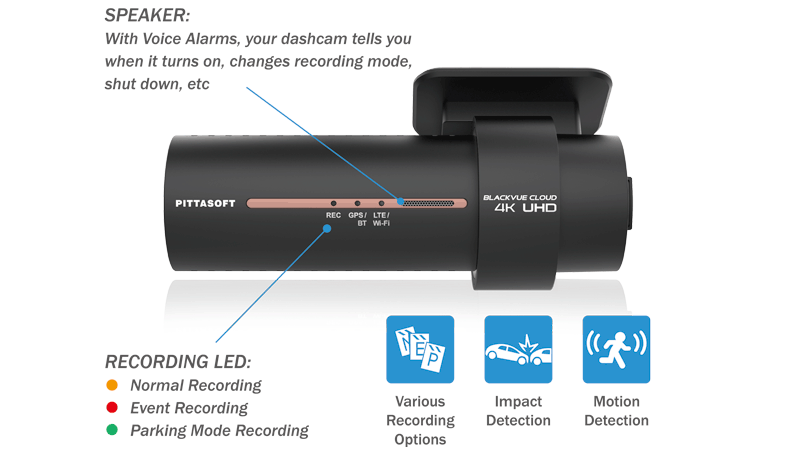

BUILT-IN IMPACT & MOTION DETECTION
Automatically tags video files
While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles.
Use the filters in the BlackVue App and Viewer
BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).

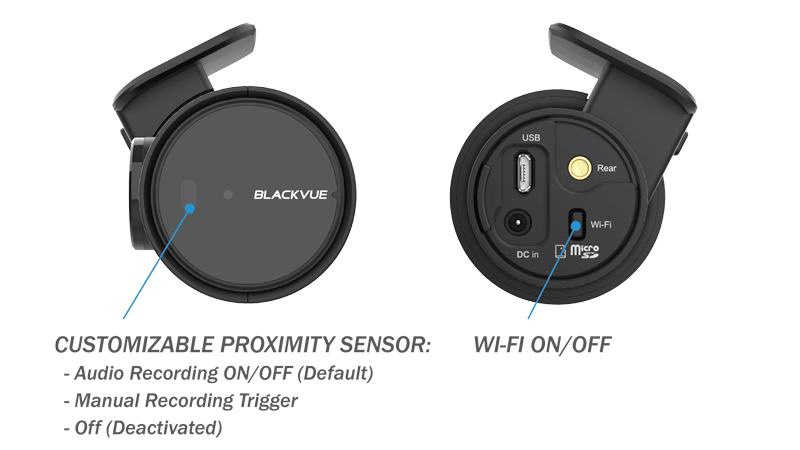

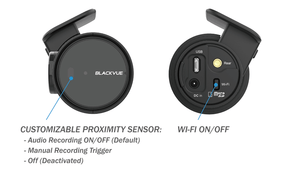

SLEEK DESIGN AND CONTROLS
Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings..
Wi-Fi button
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

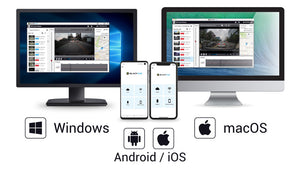

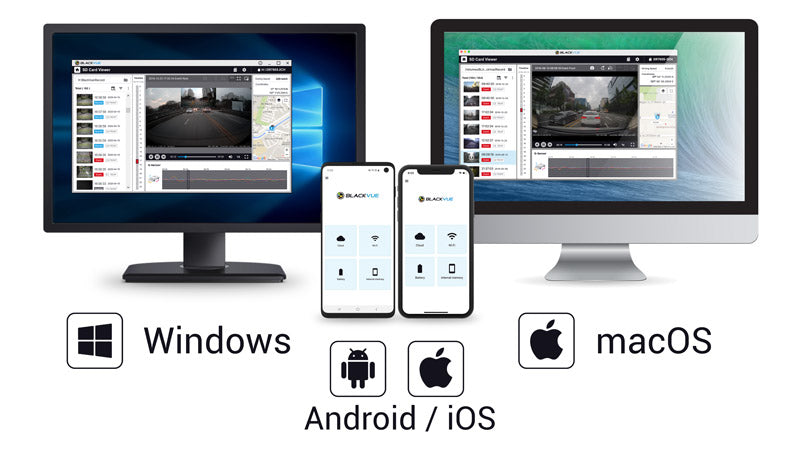

BLACKVUE APP (IOS, ANDROID) AND VIEWER (WINDOWS/MAC)
Easily manage your video files
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.
With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.

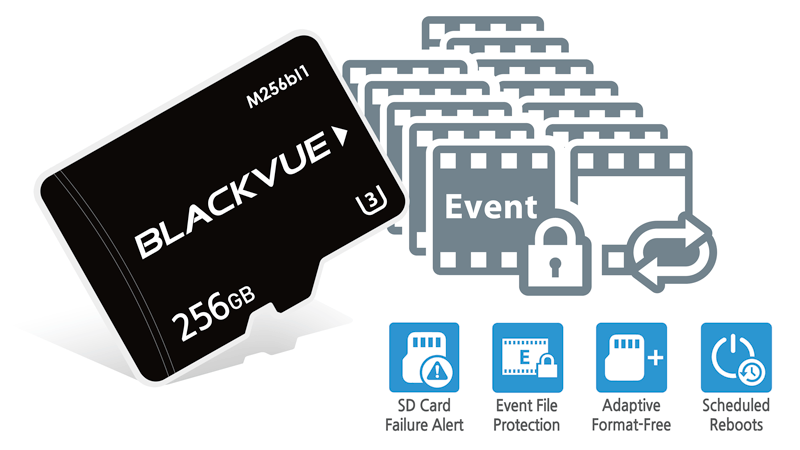

OPTIMIZED FILE MANAGEMENT
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
BLACKVUE OVER THE CLOUD
BlackVue Cloud
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.

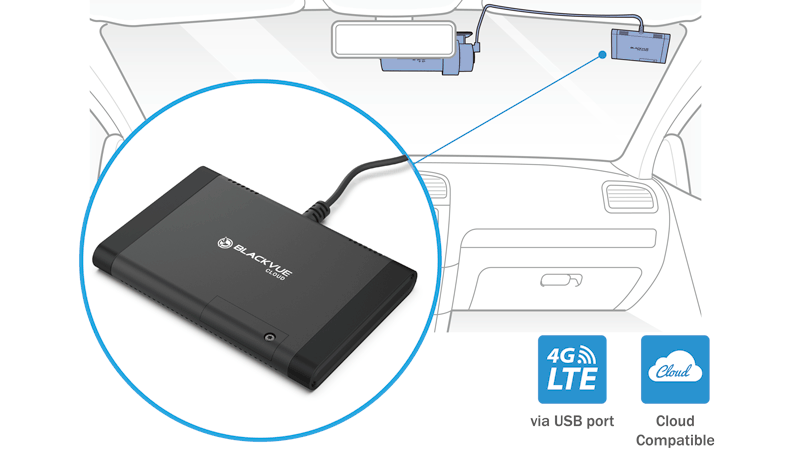

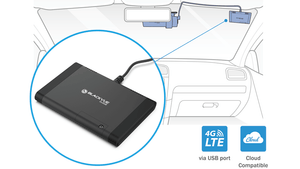

LTE Connectivity Module (Optional)
Unlock BlackVue Cloud access. Share Wi-Fi in your car.
The CM100LTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CM100LTE is powered and connects via the USB port of your dashcam.
When connected to the CM100LTE, BlackVue DR900X Plus Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network.

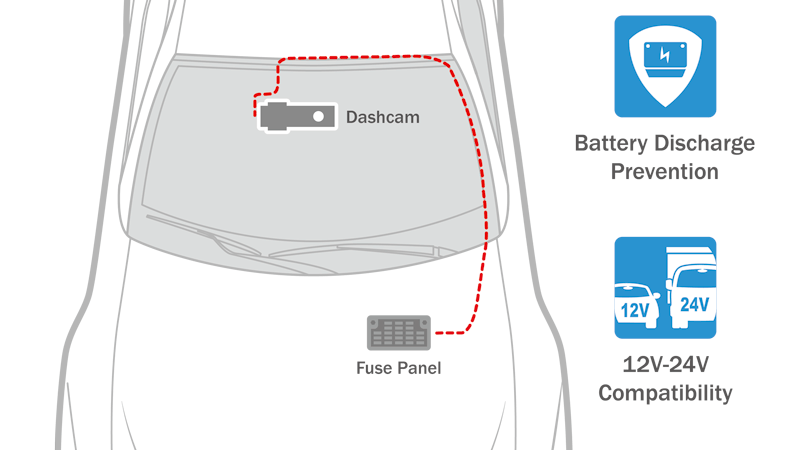

Native Parking Mode
Hardwiring cable included
DR900X Plus Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Plus Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Intelligent Parking Mode
Protect your car when you are away.
BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR900X Series supports two Parking Mode options:
Motion & Impact Detection Parking Mode detects both:
- Motions recorded by the image sensor (marked “P” in the file list).
- Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).
Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.
Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 54 hours on a 32GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.
Parking Mode Event Voice Notifications:
Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Scheduled Reboot:
Schedule a daily automatic reboot (optional—at night by default) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.
Super stealthy:
Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
Specifications
| Model Name | DR900X-2CH Plus 4K UHD DASHCAM |
| Channel |
2CH |
| Highlights |
4K UHD (Front) + Full HD (Rear), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
| Product Dimensions |
Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) / 106 g (3.74 oz) Rear: W 67.4 mm (2.65″) x H 25 mm (0.98″) / 25 g (0.88 oz) |
| Rear Camera Connection |
Coaxial cable |
| Memory Support |
microSD card up to 256GB |
| Recording Modes |
– Normal, |
| Parking Mode |
YES (with 3-wire hardwiring cable – included) |
| Parking Mode Event Voice Notifications |
YES |
| Imaging Sensor |
Front: 8MP CMOS Sensor |
| Viewing Angle |
Front: Diagonal 162°, Horizontal 136°, Vertical 77° |
| Resolution Frame Rate |
Front / Rear -4K UHD (3840×2140) @30fps / Full HD (1920×1080) @30fps *Frame rate may vary during Wi-Fi streaming |
| Video Codec |
H.264 (AVC) |
| Image Quality and Bitrate Front/Rear |
Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps |
| Format Free |
YES (Adaptive) |
| Event File Overwrite Protection |
YES (up to 50) |
| SD Card Failure Alert |
YES |
| Scheduled Reboot |
YES |
| Video File Extension |
MP4 |
| Wi-Fi |
Built-in (802.11 a.b.g.n.ac) |
| Cloud Compatible |
YES |
| GPS |
Built-in (Dual Band : GPS, GLONASS) |
| Microphone |
Built-in |
| Speaker |
Built-in |
| Impact Sensor |
3-Axis Acceleration Sensor |
| LED Indicators |
Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED |
| Button |
Button: Wi-Fi ON/OFF (Tap) |
| Operation Temperature |
20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature |
-20 °C − 80 °C (-4 °F − 176 °F) |
| High Temp Cut Off |
Approx. 75℃ (167°F) |
| Backup Battery |
Built-in supercapacitor |
| Input Power |
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour |
Normal Mode (WiFi On/GPS On/2CH): Avg. 455mA/12V Normal Mode (WiFi Off/GPS On/2CH): Avg. 385mA/12V Parking Mode (WiFi On/GPS Off/2CH): Avg. 390mA/12V Parking Mode (WiFi Off/GPS Off/2CH): Avg. 330mA/12V * Actual power consumption may vary depending on use conditions and environment. |
| Certifications |
Front: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE |
| software |
BlackVue Viewer |
| Application |
BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Others |
Adaptive Format-Free File Management System |
| LTE | External (Optional) |
Recording time
| Model | Memory Capacity | Image Quality | Resolution |
|---|---|---|---|
| DR900X-2CH / DR900X-2CH IR / DR900X-2CH Plus / DR900X-2CH IR Plus |
4K UHD @30fps + Full HD @30fps | ||
| 16GB | Extreme | 55 MIN | |
| Highest | 1 HR 25 MIN | ||
| High | 1 HR 50 MIN | ||
| Normal | 2 HR 20 MIN | ||
| 32GB | Extreme | 1 HR 50 MIN | |
| Highest | 2 HR 50 MIN | ||
| High | 3 HR 40 MIN | ||
| Normal | 4 HR 40 MIN | ||
| 64GB | Extreme | 3 HR 40 MIN | |
| Highest | 5 HR 40 MIN | ||
| High | 7 HR 20 MIN | ||
| Normal | 9 HR 20 MIN | ||
| 128GB | Extreme | 7 HR 20 MIN | |
| Highest | 11 HR 20 MIN | ||
| High | 15 HR 40 MIN | ||
| Normal | 18 HR 40 MIN | ||
| 256GB | Extreme | 14 HR 40 MIN | |
| Highest | 22 HR 40 MIN | ||
| High | 31 HR 20 MIN | ||
| Normal | 37 HR 20 MIN | ||
| Bitrate (Mbps) Front + Rear | Extreme | 25 + 10 | |
| Highest | 12 + 10 | ||
| High | 10 + 8 | ||
| Normal | 8 + 6 |
